K1SB is a popular single axis CNC system with 5.7 inch LED display. It can be matched with KND Three-phase hybrid stepper driver or Digital AC servo driver. K1SB is suitable for Nonstandard equipment and Special CNC Machine tool.
Features
K1SB is an economy new generation of single
axis CNC system built by Beijing KND CNC Technique Co., Ltd. in connection with
the actual situation in
Specification
|
Function |
Name |
Specification |
|
Control axes |
Control axes |
1 axis（X） |
|
Input command |
Least command unit |
0.001 mm |
|
Least increment unit |
0.001 mm |
|
|
Max. command |
±9999.999 mm |
|
|
Feed |
Rapid traverse rate |
15m /min |
|
Feed rate range Per min |
1～15000 mm/min |
|
|
Automatic acceleration/ deceleration |
provided (linear，exponential) |
|
|
Feed rate override |
0～150% |
|
|
JOG |
Manual continuous feed, returning zero by
manual |
provided |
|
Step feed |
0.001、0.01、0.1、1 |
|
|
Axis motion |
Positioning, linear |
G00, G01 |
|
Test |
Dry run , Single block |
provided |
|
Coordinates and dwell |
Dwell(s) |
G04 |
|
Work coordinates system setting |
G50 |
|
|
Auto coordinates system setting |
provided |
|
|
Run mode |
MDI, AUTO, JOG, STEP, EDIT |
provided |
|
Safety function |
Stored stroke limit check |
provided |
|
Emergency stop |
provided |
|
|
Program edit and storage |
Capacity of program and number |
32K size and 63 programs |
|
Program editing |
Insert ,alter and delete |
|
|
Program No, sequence No, address, word
search |
provided |
|
|
Decimal point input |
provided |
|
|
Flash memory |
provided ,6 region |
|
|
Display |
LCD |
320×240 |
|
Position, program, variety, alarm, diagnose
and parameter |
provided |
|
|
DI/DO |
DI/DO: 16/8 |
provided |
|
M function |
Miscellaneous function |
M xx |
|
Compensation |
Backlash |
provided |
|
Macro function |
Consumer macro(A) |
provided |
|
Subprogram call |
provided |
|
|
Subprogram protect |
provided |
|
|
Other function |
Electronic gear ratio |
provided |
|
The program can start from any point |
provided |
|
|
Retain coordinates value at power off |
provided |
|
|
axial rotation function |
provided |
|
|
Overleap steps function（G31） |
provided |
|
|
Optional function |
Simulative principal axis function (4-digit
S code) |
provided（8-bit D/A output） |
|
Additional operation interface |
|
|
|
Feed per revolution(encoder is 1024 pulses) |
provided |

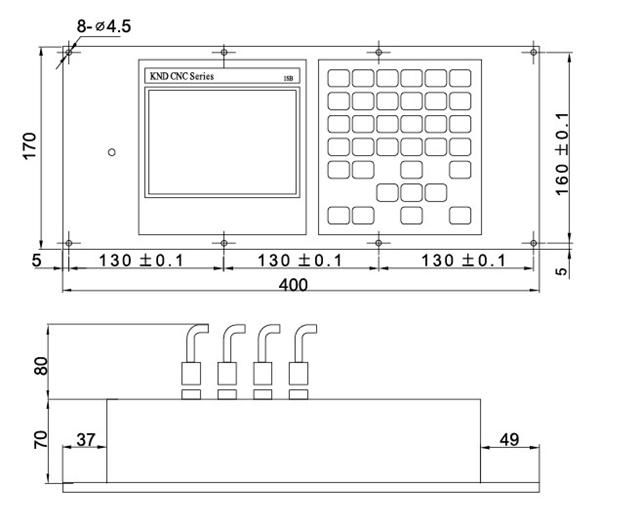

Dimension
