JIER Crossbar High Speed Automatic Press Line
Price:CNY /piece
Update Time:2019-06-28
Manufacturer/Supplier:JIER Machine-Tool Group Co., Ltd.
Business Type:Manufacturer
Brand:JIER
Company:JIER Machine-Tool Group Co., Ltd.
Specification
Brand:JIER
Model:
Item Description

Product


Features
- Continuous running mode
- Line speed: 15-18SPM
- ADC (Automatic Die Change): ≤180s
- Transmitting distance between presses: 5-7m
- Equipped with sound enclosure
- Whole line fault recovery


Technology

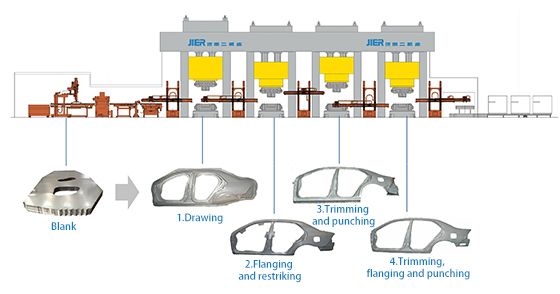

Construction
Front of Line
- Fanner magnetic
- Destacker
- Feed in conveyor
- Washer and programmable oiler
- Centering table
Presses and feeding units
- Presses
- Crossbar transfer system
End of Line
- Exit conveyor
- Inspection table
- Illumination system

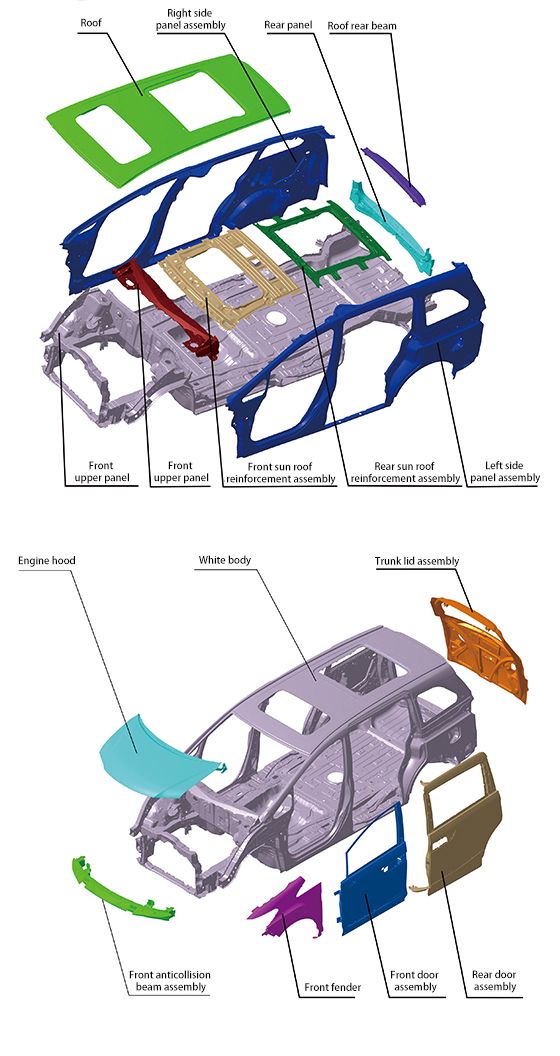

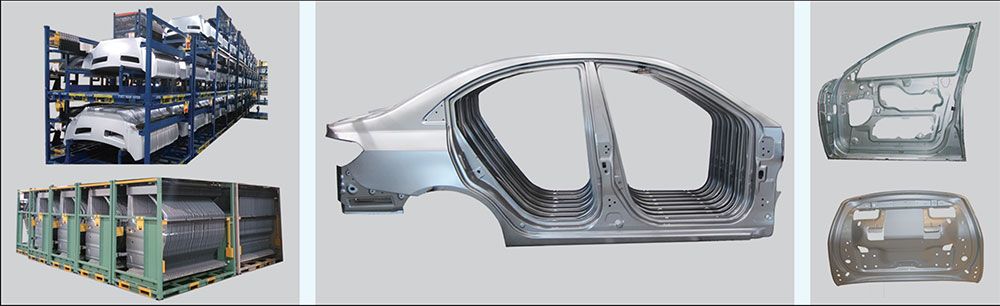

Parts






Equipment for reference


■Stamping line with 2-arm feeding system reference: examples 50+







Total capacity

Stamping speed

Stamping line specification

 Stamping line 1

 71000kN5 presses)

 15-18SPM

 XL

 Stamping line 2

 71000kN5 presses)

 15-18SPM

 XL

 Stamping line 3

 70000kN4 presses)

 15-18SPM

 XL

 Stamping line4

 70000kN4 presses)

 15-18SPM

 XL

 Customer

Automobile makers in USA




Total capacity

Stamping speed

Stamping lien specification

 Stamping line

 50000kN4 presses)

 15-18SPM

 XL servo line

 Customer

  Chinese automobile makers
