Product
■Technical performance
-Intermittent production mode of blanking line
-Suitable for steel and aluminum sheets
-Sheet data：width 300-2050mm, thickness 0.4-4mm
-Line speed：90-100m/min
-Production speed：15-65spm
-Leveling accuracy：1mm/m
-Feeding accuracy：±0.1mm/m
-Stacking accuracy： ±5mm of whole stack
Technology

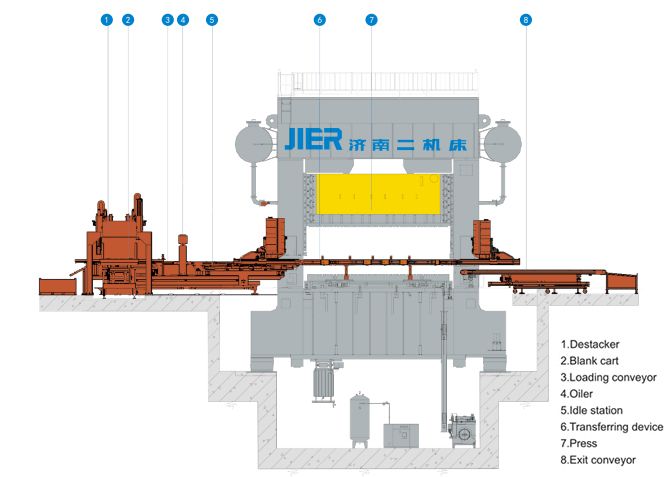

■Construction
- Destacker
- Blank cart
- Loading conveyor
- Oiler
- Idle station
- Transferring device
- Press (Mechanical / Servo)
- Exit conveyor

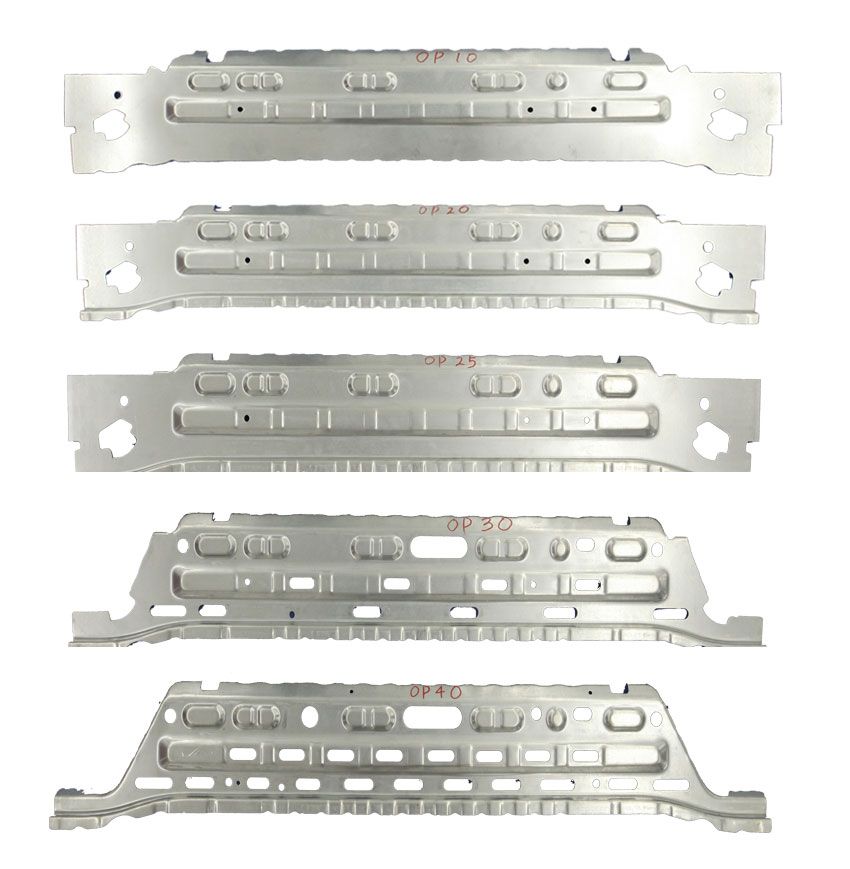

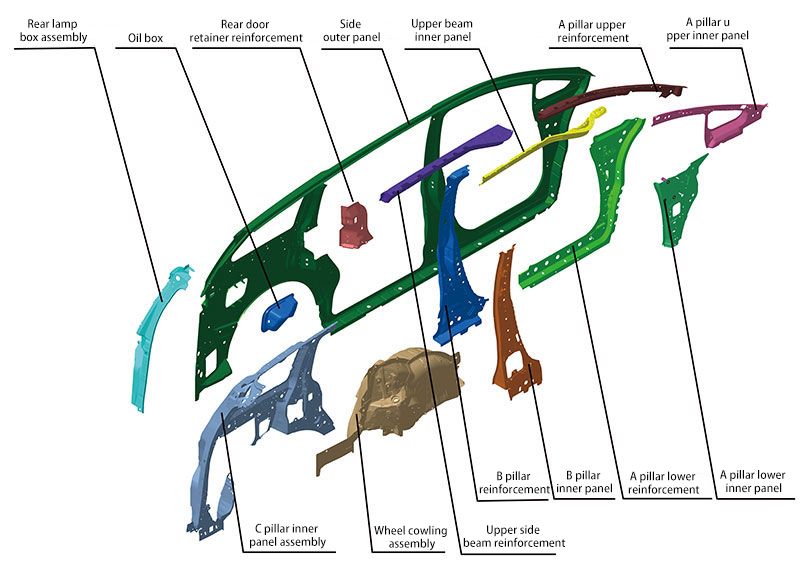

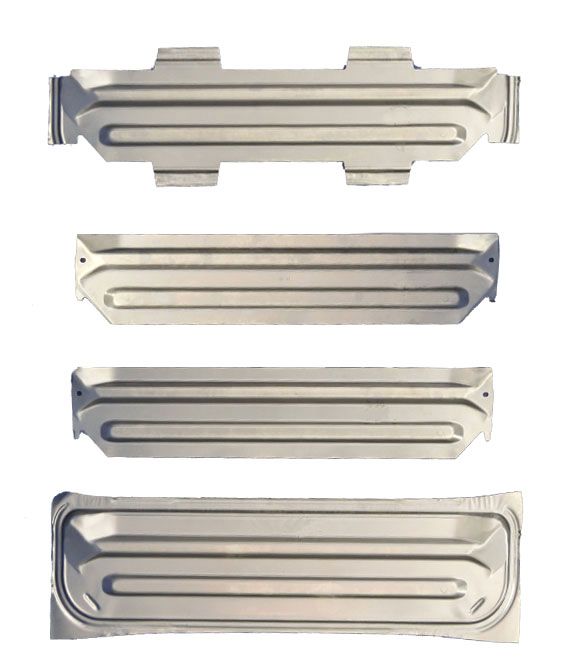

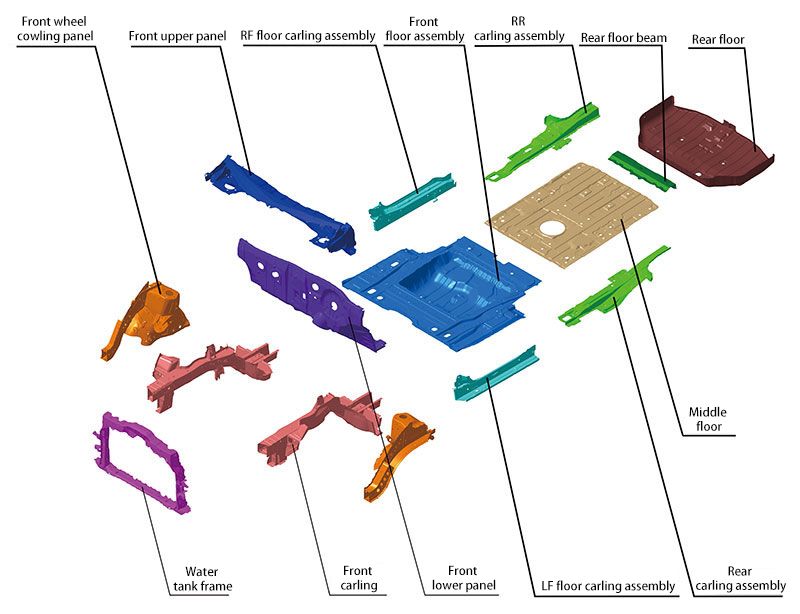

Parts
Equipment for reference

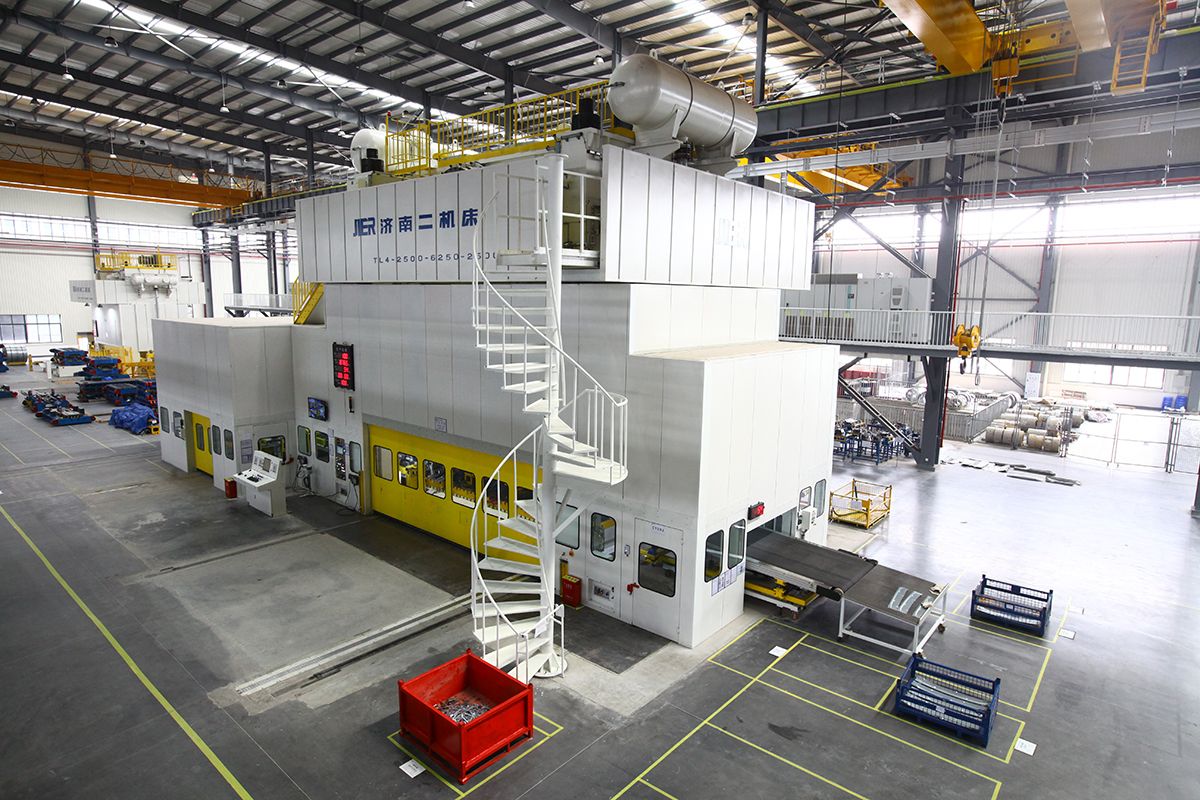

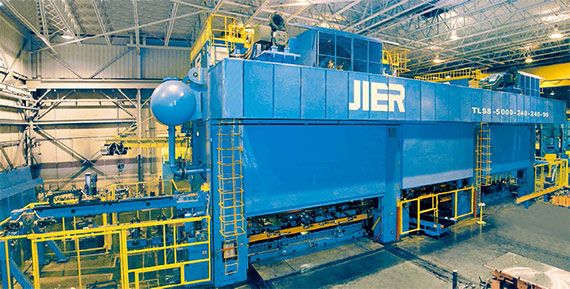

■Transfer stamping line reference：examples 40+
|
|
Total capacity |
Stamping speed |
Stamping line specification |
|
Transfer line |
25，000kN |
10-25SPM |
L |
|
Customer |
Chinese automobile makers |
||
more
