JIER Blanking Line
Price:CNY /piece
Update Time:2019-06-28
Manufacturer/Supplier:JIER Machine-Tool Group Co., Ltd.
Business Type:Manufacturer
Brand:JIER
Company:JIER Machine-Tool Group Co., Ltd.
Specification
Brand:JIER
Model:
Item Description

Product


Technical performance

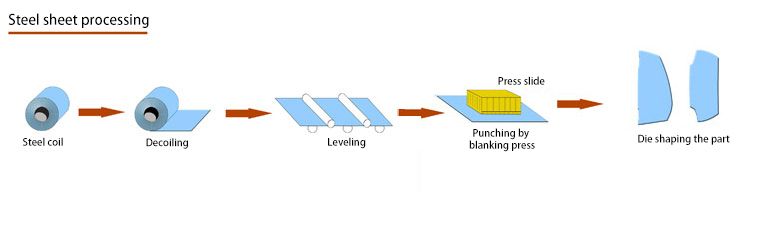

-Intermittent production mode of blanking line
-Suitable for steel and aluminum sheets
-Sheet data: width 300-2050mm
thickness 0.4-4mm
-Line speed
90-100m/min
-Production speed
15-65spm
-Leveling accuracy
1mm/m
-Feeding accuracy
±0.1mm/m
-Stacking accuracy
±5mm of whole stack




Technology

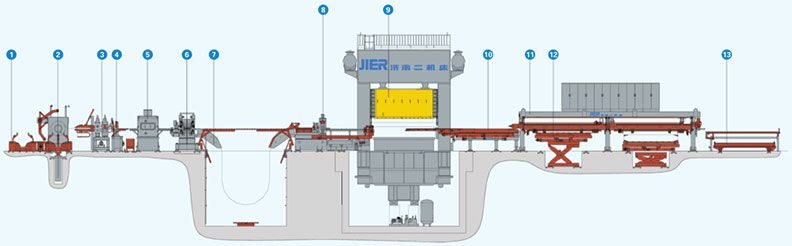

Construction
1. Loading cart
2. Decoiler
3. Lead-in device
4. Cropping shear (option)
5. Washing machine (option)
6. 6Hi precision leveller
7. Loop
8. Servo feeder
9. Blanking press (mechanical or servo
- Side stacker (option)
10. Telescopic belt conveyor
11. Magnetic stacker (start stop or continuous
12. Stacking cart
13. Inspection table and scrap box




Part

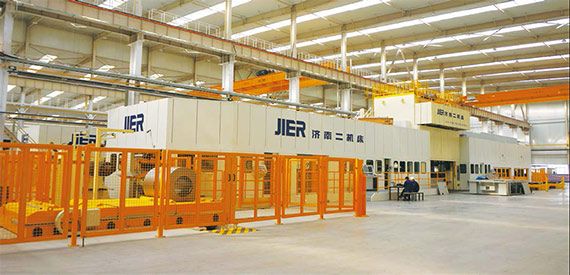

Equipment for reference


De-coiling blanking line referenceexpamples 50+
