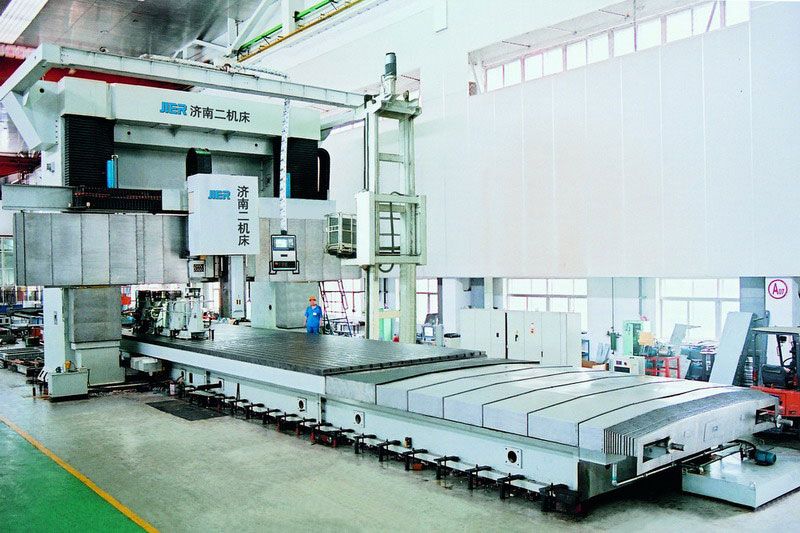

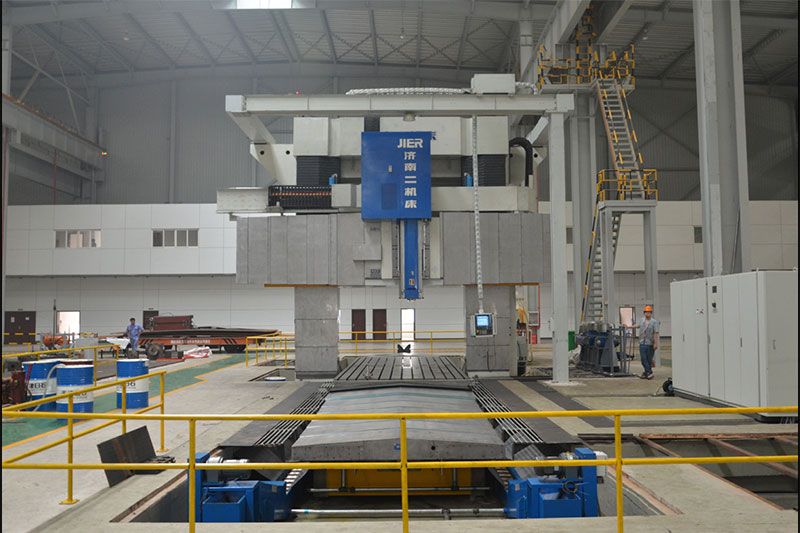

Features
- Optimum rigidity and anti-vibration
combination of large components
- High power, large torque and
full-automatic milling head and accessory milling head
- With dynamic counterbalancing accuracy
compensation system by way of electric &
hydraulic proportion for W-axis
- Heavy cutting, high rigidity, heavy load capacity and good endurance of accuracy
Specifications
|
Width of table |
mm |
2000~6000 |
|
Length of table |
mm |
L=2000+ n×1000 |
|
Loading capacity of table |
ton/m |
5~25 |
|
Pass width |
mm |
2600~6600 |
|
Pass height |
mm |
2000~6000 |
|
Stroke(W -axis) |
mm |
1500~4000 |
|
Power of spindle motor |
kW |
20~110 |
|
Stroke of spindle |
mm |
950/1250/1500/2000 |
|
Max. rotation rate of spindle |
rpm |
1200/2000/3000 |
|
Feed speed |
m/min |
XY:10,Z:5,W:2/3 |
Application
- Widely applied in heavy machinery, metallurgy, defense industry, shipbuilding, aerospace, energy generation, locomotive, automobile, machine tool sectors etc.
