DA-69T DA-Touch series 3D graphical control for CNC press brakes
The new generation DA-Touch controls offers an even higher grade of efficiency in programming, operation and control of today's press brakes. Ease of use combined with state-of-the-art technology go hand in hand, improving productivity. The touch screen gives access to the proven Delem user-interface and enables direct navigation between programming and production. Functions are directly located where you need them, offering optimised ergonomics throughout the application.
The DA-69T offers 2D as well as 3D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.
Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using press brakes easier, more efficient and more versatile then ever. The OEM-panel located above the screen, reserved for machine functions and OEM-application switches, is integrated in the design and can be used depending the required application.
Features
■ 3D and 2D graphical touch screen programming mode
■ 3D visualisation in simulation and
■ production
■ 17" high resolution colour TFT
■ Full Windows application suite
■ Delem Modusys compatibility (module scalability and adaptivity)
■ USB, peripheral interfacing
■ User specific application support within the controllers multitasking environment
■ Sensor bending & correction interface
Electric control system of bending
machine
Electric control system of bending machine can be customized according to customer requirements, integration of the Company E series, DA series CNC system.
Fiessler optoelectronic safety AKAS
series Photo-electric Safeguarding of Press Brakes
Germany Fissler company launched the AKAS ® series bending machine safety photoelectric protection device,the AKAS ® series of transmit receivers can be selected automatically depending on the user's requirements, can also not with automatic adjustment of the LC series; F series with integrated bending machine PLC and without M series.
Features:
■ Maximum safe range for increased productivity
■ The mold can be changed automatically after adjustment
■ Adjust the response time of 2ms
■ Automatic measurement and control of safety speed
■ Supports the shell workpiece bending safety protection
FPBS Laser safety protection device
dedicated to bending machine
FPBS is jointly developed by Nanjing ESTUN and Germany FIESSLER Company. It is a professional safety protection device specific to Chinese safety standards for bending machine. Twenty-year experience of ESTUN in forging industry and professional development guarantee the applicability of FPBS.Germanymanufacturer guarantees the excellent quality of FPBS. FPBS can be installed on bending machine easily with the help of special installation support to protect the front part of bending machine and operator and prevent accident.
Major
characteristics
■ Double-beam laser safety detection
■ Dual redundant safe output
■ Folded box mode
■ Safe speed monitoring
■ 1.5ms high-speed response
■ State and signal indicate
■ Input monitoring of safety point
Major
data
Electric parameters |
|
Working voltage |
24V DC, +/-20% |
Maximum working current |
0.5A at most |
Protection level |
III |
Electric connection |
Emitter: rapid plug Receiver: rapid plug |
Output |
OSSD 1nad OSSD2; fault safety protection
transistor;0.5Aat most; one circuit breaker and one leakage current monitor. FA: transistor output,0.5Aat most |
Input |
FP. S1. S2: 10mA BB: 25mA |
Response time |
1.5ms, after beam is occluded and before
OSSDs signal is cut off 10ms, after pedal is released or
protective circuit is switched on and before OSSDs output is shut down |
Environmental parameters |
|
Working environment temperature |
0℃ to50℃ |
Storage environment temperature |
-25℃ to70℃ |
SAFE100
Safety control module
Safety functions
• Redundant loop, dual CPU control
• Connection fault detection
• Input fault detection Detect the fault of input channel via detecting impulse signal
• Output fault detection
• Backup and detection of key data
SAFE100 safety module is a special safety module developed subject to CE safety product standards. It has complete self-diagnosis function and input/output loops and CPU are dualredundant-structured so the safety function would not fail when single loop breaks down. It has impulse detection power so it can detect circuit fault automatically and indicate output state.
Function |
Signal port |
Signal mode |
Action mode |
Instant stop monitoring |
IN1, IN2 |
NC,NC |
Oil pump stops and machine tool stops
running. |
Side door monitoring |
IN3, IN4 |
NC,NC |
Slider can descend slowly (<20mm/S) |
Back door monitoring |
IN07, IN08 |
NC,NC |
Oil pump stops and machine tool stops
running. |
Pedal monitoring |
IN13, IN14 |
NC, NO/NO, NO |
Pedals in three position. Pedal on upper
position stops, pedal on middle position works and pedal on lower position
stops. |
Mode monitoring |
IN17, IN18 |
NC, NO |
Single mode, slider working normally;
adjustment mode, slider slowing down in the whole course. |
Detection mode |
IN15, IN16, IN19 |
NC,NC, NC |
Signal accesses and machine tool enters
continuous detection mode. |
Safe output |
O1, O2 |
Dual redundant output |
Instant stop and back door protection are
triggered and output stops. |
Technical
specification
■ Power port: 24V, 0V (system)24VO, 0VO (IO port), FG (shell grounded)
■ Safety input: I01-I20 (20mA)
■ Detection output: T1-T4 (PNP 0.5A)
■ Assistant output: OA (PNP 0.5A)
■ Safe output of transistor: O1-O4 (PNP 2A)
■ Safe output of relay: R1A, R1B; R2A, R2B (capacity: 24VDC/3A; 220VAC/3A)
■ Extension port: CO+, CO-, CI+, CI- (reserved)
■ CAN interface: CN3 (reserved)
■ RS232 interface: CN6
FPBS Special
installation support
Product
characteristics
• High repeated precision
• Convenient debugging
• Self-locking function of limiter in vertical direction
• No squeezing risk when out of control
• Arrow mark function of different moulds
• Function of shock absorber of integrated emitter
• High-quality structure composed of Al stainless steel
Other optional products

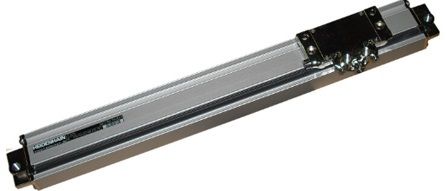

Germany Heidenhain grating
Features:
■ Enclosed grating
■ Ruler and scan head with anti-pollution housing rail built-in
■ The scanning head moves within the scale
■ Friction is low
■ Measuring step 5μm
■ Universal TTL level interface
■ Wide selection:220mm-920mm
■ Can be applied to a vibrating machinery
■ Installation is simple
■ Anti-vibration
Aluminum slit strips: a precision slitting line with minimal burring enables tension-free custom cutting for coil widths up to 2,100 mm
