DA-56s Compact 4-axis color graphical
CNC system for press brake
The compact DA-56s provides easy CNC programming with the Delem 2D graphical product design tool. Machine adjustment and test bends are reduced to a minimum because of the quick and easy to use bend sequence determination tool.
The CNC program is generated with a one touch key stroke. You are ready to make the first part since all axes positions are automatically computed and the bend sequence has already been simulated on the screen with the machine and tools in real scale.
In the production mode of the DA-56 the operator can graphically simulate the bend process of the product guiding him during the press brake operation.
The basic machine control functions are Y1-Y2 and X axis, optionally a second back gauge axis can be used as R/Z or X2 axis. Also the crowning function is standard on board.
Features
■ 2D graphical programming
■ 10,4" LCD TFT colour display
■ Bend sequence determination
■ Developed length calculation
■ Crowning control
■ USB peripheral interfacing
■ Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
Electric control system of bending
machine
Electric control system of bending machine can be customized according to customer requirements, integration of the Company E series, DA series CNC system.

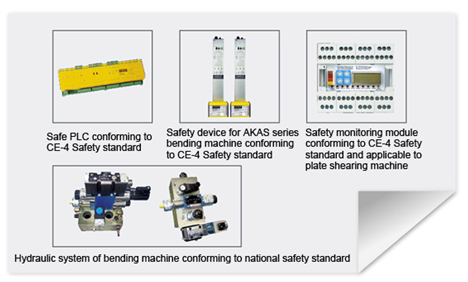

Fiessler optoelectronic safety AKAS
series Photo-electric Safeguarding of Press Brakes
Germany Fissler company launched the AKAS ® series bending machine safety photoelectric protection device,the AKAS ® series of transmit receivers can be selected automatically depending on the user's requirements, can also not with automatic adjustment of the LC series; F series with integrated bending machine PLC and without M series.
Features:
■ Maximum safe range for increased productivity
■ The mold can be changed automatically after adjustment
■ Adjust the response time of 2ms
■ Automatic measurement and control of safety speed
■ Supports the shell workpiece bending safety protection

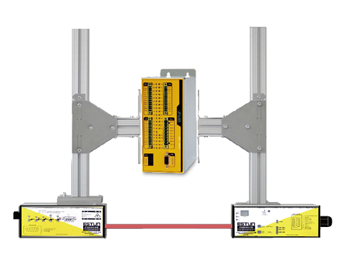

FPBS Laser safety protection device
dedicated to bending machine
FPBS is jointly developed by Nanjing ESTUN and Germany FIESSLER Company. It is a professional safety protection device specific to Chinese safety standards for bending machine. Twenty-year experience of ESTUN in forging industry and professional development guarantee the applicability of FPBS.Germanymanufacturer guarantees the excellent quality of FPBS. FPBS can be installed on bending machine easily with the help of special installation support to protect the front part of bending machine and operator and prevent accident.
Major
characteristics
■ Double-beam laser safety detection
■ Dual redundant safe output
■ Folded box mode
■ Safe speed monitoring
■ 1.5ms high-speed response
■ State and signal indicate
■ Input monitoring of safety point
Major
data
Electric parameters |
|
Working voltage |
24V DC, +/-20% |
Maximum working current |
0.5A at most |
Protection level |
III |
Electric connection |
Emitter: rapid plug Receiver: rapid plug |
Output |
OSSD 1nad OSSD2; fault safety protection
transistor;0.5Aat most; one circuit breaker and one leakage current monitor. FA: transistor output,0.5Aat most |
Input |
FP. S1. S2: 10mA BB: 25mA |
Response time |
1.5ms, after beam is occluded and before
OSSDs signal is cut off 10ms, after pedal is released or
protective circuit is switched on and before OSSDs output is shut down |
Environmental parameters |
|
Working environment temperature |
0℃ to50℃ |
Storage environment temperature |
-25℃ to70℃ |
SAFE100
Safety control module
Safety functions
• Redundant loop, dual CPU control
• Connection fault detection
• Input fault detection Detect the fault of input channel via detecting impulse signal
• Output fault detection
• Backup and detection of key data
SAFE100 safety module is a special safety module developed subject to CE safety product standards. It has complete self-diagnosis function and input/output loops and CPU are dualredundant-structured so the safety function would not fail when single loop breaks down. It has impulse detection power so it can detect circuit fault automatically and indicate output state.
Function |
Signal port |
Signal mode |
Action mode |
Instant stop monitoring |
IN1, IN2 |
NC,NC |
Oil pump stops and machine tool stops
running. |
Side door monitoring |
IN3, IN4 |
NC,NC |
Slider can descend slowly (<20mm/S) |
Back door monitoring |
IN07, IN08 |
NC,NC |
Oil pump stops and machine tool stops
running. |
Pedal monitoring |
IN13, IN14 |
NC, NO/NO, NO |
Pedals in three position. Pedal on upper
position stops, pedal on middle position works and pedal on lower position
stops. |
Mode monitoring |
IN17, IN18 |
NC, NO |
Single mode, slider working normally;
adjustment mode, slider slowing down in the whole course. |
Detection mode |
IN15, IN16, IN19 |
NC,NC, NC |
Signal accesses and machine tool enters
continuous detection mode. |
Safe output |
O1, O2 |
Dual redundant output |
Instant stop and back door protection are
triggered and output stops. |
Technical
specification
■ Power port: 24V, 0V (system)24VO, 0VO (IO port), FG (shell grounded)
■ Safety input: I01-I20 (20mA)
■ Detection output: T1-T4 (PNP 0.5A)
■ Assistant output: OA (PNP 0.5A)
■ Safe output of transistor: O1-O4 (PNP 2A)
■ Safe output of relay: R1A, R1B; R2A, R2B (capacity: 24VDC/3A; 220VAC/3A)
■ Extension port: CO+, CO-, CI+, CI- (reserved)
■ CAN interface: CN3 (reserved)
■ RS232 interface: CN6
FPBS Special
installation support
Product
characteristics
• High repeated precision
• Convenient debugging
• Self-locking function of limiter in vertical direction
• No squeezing risk when out of control
• Arrow mark function of different moulds
• Function of shock absorber of integrated emitter
• High-quality structure composed of Al stainless steel
Other
optional products
Germany Heidenhain grating
Features:
■ Enclosed grating
■ Ruler and scan head with anti-pollution housing rail built-in
■ The scanning head moves within the scale
■ Friction is low
■ Measuring step 5μm
■ Universal TTL level interface
■ Wide selection:220mm-920mm
■ Can be applied to a vibrating machinery
■ Installation is simple
■ Anti-vibration
